Model PC 171

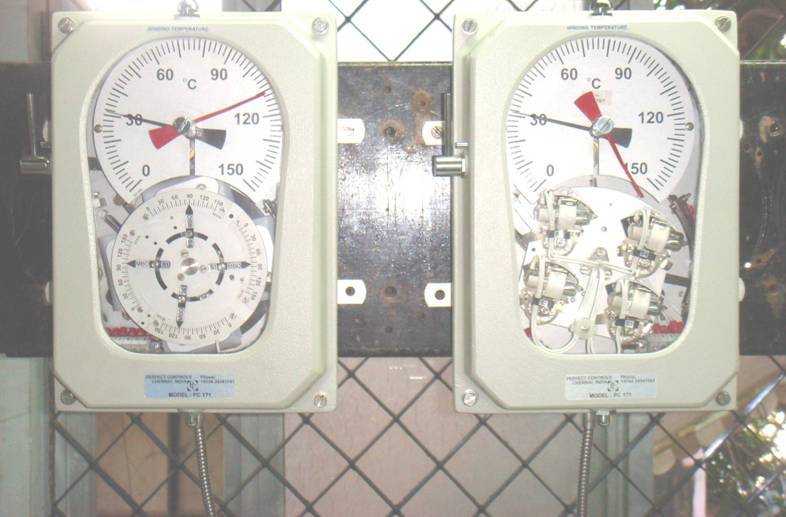

MODEL PC171
  • Specially designed to protect large power transformers
  • Self powered operation
  • Liquid in Metal expansion type
  • Ergonomically designed 270 deg dial for optimum viewing
  • Complete Ambient temperature & Head compensation
  • IP55 weather proof ventilated case, can be directly mounted on transformer
  • Various Measuring ranges: 0-150°C, 20-140°C, 30-150°C, 0-120°C
  • Measuring accuracy of 1% fsd.
  • Stainless steel armour sheathed capillary of 5m, 6m, 10m, 12m can be provided
  • Winding Temperature is measured using a special Thermal Imaging device which is specially designed for each transformer manufacturer
  • Thermal imaging device accurately simulates the winding temperature gradient as a function of CT secondary current
  • Since the time constant of the thermal imaging device is same as oil immersed transformer winding, the winding temperature is accurately tracked with respect to time.
  • Switch and circuit testing facility provided from outside the case
  • Maximum Temperature indicating pointer is provided
  • All components are made of brass and non ferrous materials for reliable long-term performance
  • No periodic site adjustments
  • Upto four Microswitches or Mercury switches are provided for Alarm, trip, cooler fan/pump operation
  • Mercury switches have 5A, 250V ac/dc rating
  • Microswitches have better vibration resistance
  • Microswitches are not sensitive to deviation from vertical mounting
  • Also, use of mercury is banned in many countries
  • Micro switches have 15A, 250V ac rating
  • For higher dc rating, a Magnetic Blow Out (MBO) microswitch can be used which has rating of 3A, 250V ac/dc
  • All circuits to earth are tested at 2500V, 50Hz for 1 minute
