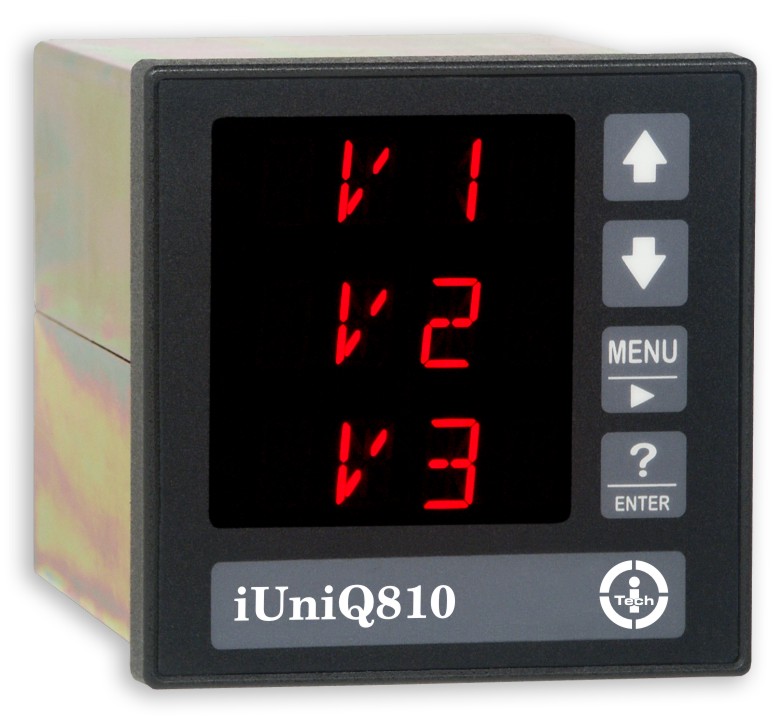

Unique Multifunction Power Meter …

and Multifunction Transducer

Unique Rogowski coil Input option (see Rogowski Coil section)

Powerful Datalogging function with 2 MB Non-Volatile Memory

Stores MIN/MAX/AVG values on Eight selectable parameters for user configurable 1,5,10,15,30 or 60 minutes programmable.

Total & Daily energy consumption Recording

Daily consumption Recording lasts more than 300 days.

Event and Alarm Recording

THD & FFT harmonic analysis upto 50^th Harmonic

Upto 4 User configurable Analog Outputs

Power & Current  demand calculation during user-definable time period

Direct 600 (750)V ac

Programmable CT/PT ratios

1 A/ 5 A input programmable

True RMS Accurate even for distorted wave forms

Free WINTOOL software to program & display values on web

Both RS232 or RS485 selectable - MODBUS or A2 ASCII options

PROFIBUS communications Option

LONBUS communications option

Ethernet 10/100 Mbps communications option

Real Time waveform downloading via communication port at 128 samples / cycle

Real time clock with battery backup.
