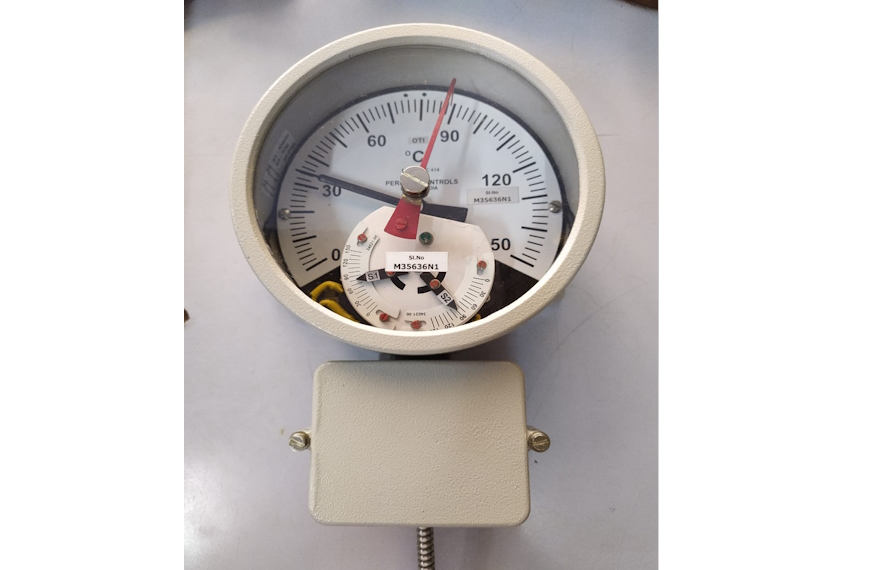

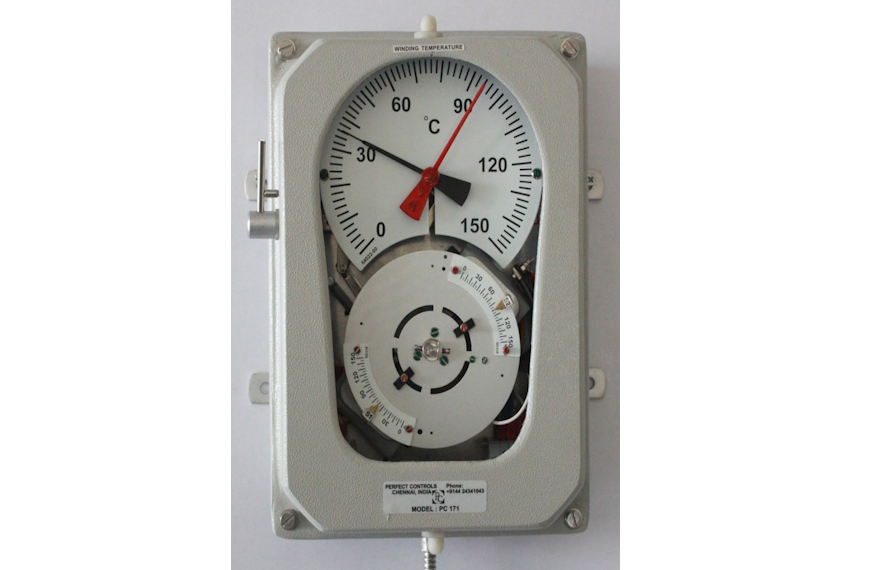

PC - 171
  • Specially designed to protect large power transformers
  • Self powered operation
  • Liquid in Metal expansion type
  • Ergonomically designed 270 degrees dial for optimum viewing
  • Complete Ambient temperature & Head compensation
  • IP55 weather proof ventilated case, can be directly mounted on transformer
  • Various Measuring ranges: 0-150°C, 20-140°C, 30-150°C, 0-120°C
  • Measuring accuracy of ±3°C (special on request)
  • Stainless steel armour sheathed capillary of 5m, 6m, 10m, 12m, 15m, 20m, 25m can be provided.
  • Winding Temperature is measured using a special Thermal Imaging device which is specially designed for each transformer manufacturer
  • " Quick disconnect option with Plug-in connectors can be provided (optional)"

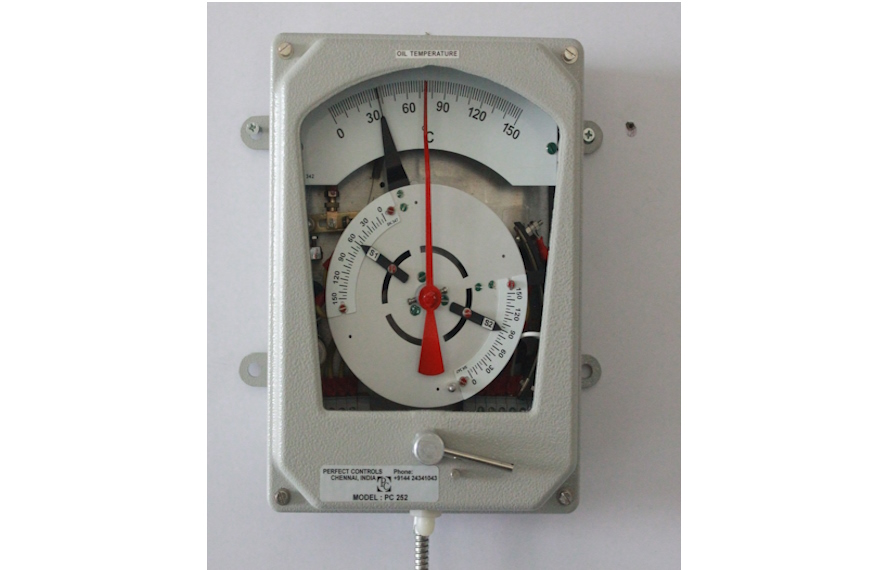

PC - 252
  • Specially designed to protect medium & large power transformers
  • Self powered operation
  • Liquid in Metal expansion type
  • Ergonomically designed 60 degrees dial for optimum viewing
  • Complete Ambient temperature & Head compensation
  • IP55 weather proof ventilated case, can be directly mounted on transformer
  • Various Measuring ranges: 0-150°C, 20-140°C, 30-150°C, 0-120°C
  • Measuring accuracy of ±3°C (special on request).
  • Stainless steel armour sheathed capillary of 5m, 6m, 10m, 12m, 15m, 20m, 25m can be provided
  • Winding Temperature is measured using a special Thermal Imaging device which is specially designed for each transformer manufacturer
  • Thermal imaging device accurately simulates the winding temperature gradient as a function of CT secondary current
  • " Quick disconnect option with Plug-in connectors can be provided (optional) "
  • " Can supply as per IEEE specifications for USA market "

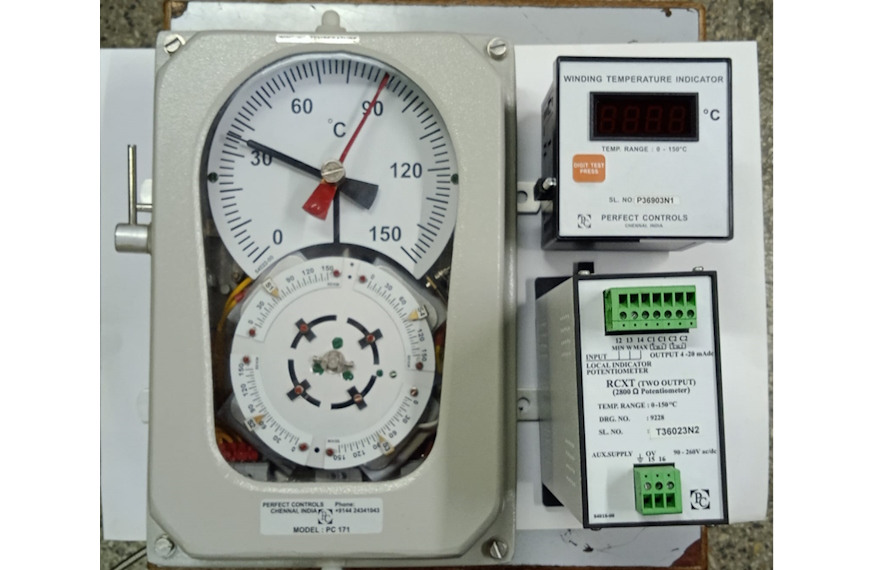

PC 171 & PC 252 REMOTE TRANSMISSION
  • Both the Model PC171 & PC 252 can be fitted with a precision potentiometer and electronic resistance to current convertor unit to transmit the measured temperature as a 4-20mA dc current signal for use in SCADA and data acquisition systems
  • Single or Dual output versions are available
  • Digital Indicator can also be provided
  • RS485 digital communication Port can be provided optionally

PC - 414
  • Round Dial model for distribution transformers
  • Self powered operation
  • Liquid in Metal expansion type
  • Ergonomically designed 240 degrees dial for optimum viewing.
  • IP55 weather proof ventilated case, can be directly mounted on transformer
  • Various Measuring ranges: 0-150°C
  • Measuring accuracy of of ±3°C (special on request)
  • Stainless steel armour sheathed capillary of 3m provided as standard
  • Winding Temperature is measured using a special Thermal Imaging device which is specially designed for each transformer manufacturer
  • Thermal imaging device accurately simulates the winding temperature gradient as a function of CT secondary current
  • Since the time constant of the thermal imaging device is same as oil immersed transformer winding, the winding temperature is accurately tracked with respect to time.
  • Switch and circuit testing facility provided from outside the case
  • Maximum Temperature indicating pointer is provided

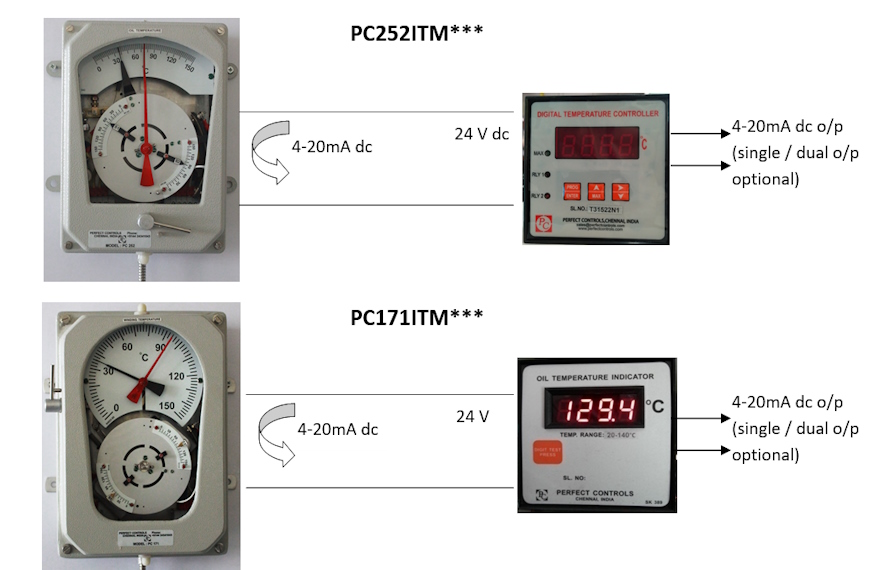

Integrated Temperature Monitor

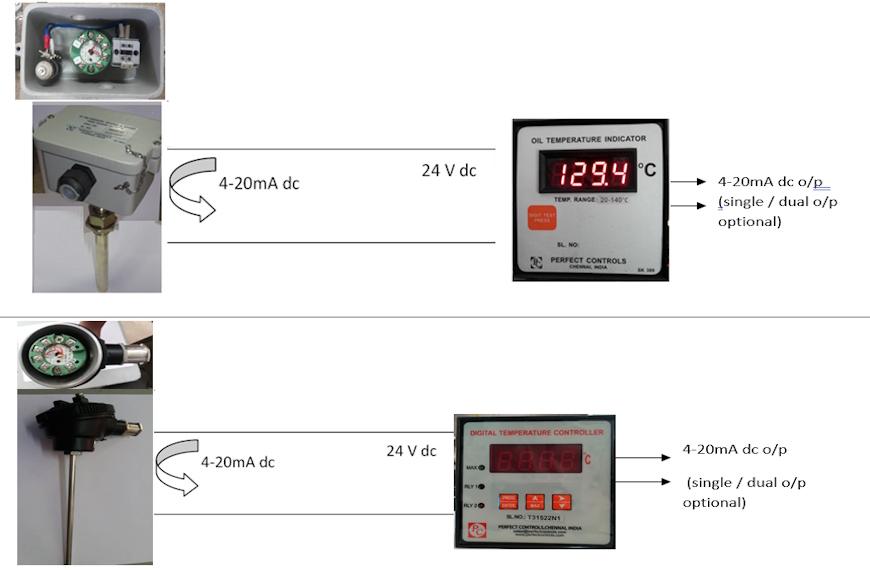

  • PC171ITM & PC252ITM are used for measurement of Oil and Winding Temperature of Large, Medium Power & Distribution Transformers with remote transmission and display of measured temperature.
  • It comprises of our Model PC-171 (or) PC252 Oil Temperature Indicator / Winding Temperature Indicator inbuilt with an Integrated Signal Transmitter (iTT180) that converts the measured temperature to a robust 2 wire 4-20mA dc current output for reliable transmission to a remotely mounted Digital Temperature Indicator (DTI) or Digital Temperature Controller (DTC).
  • Alternatively, a Power Supply Unit (PSU) can be installed at marshaling box instead of DTI / DTC; for dual 4-20mA signal output to SCADA / Display purpose.
  • DTI/ DTC or PSU provides 24 V dc Power Supply to the Integrated Signal Transmitter and receives the 4-20mA signal input on the same 2 wires.
  • Saves marshalling box space – no separate Resistance to current convertor unit.
  • Saves wiring costs – Only 2 wires are required for 24 V dc power supply as well as 4-20mA dc current OUTPUT.

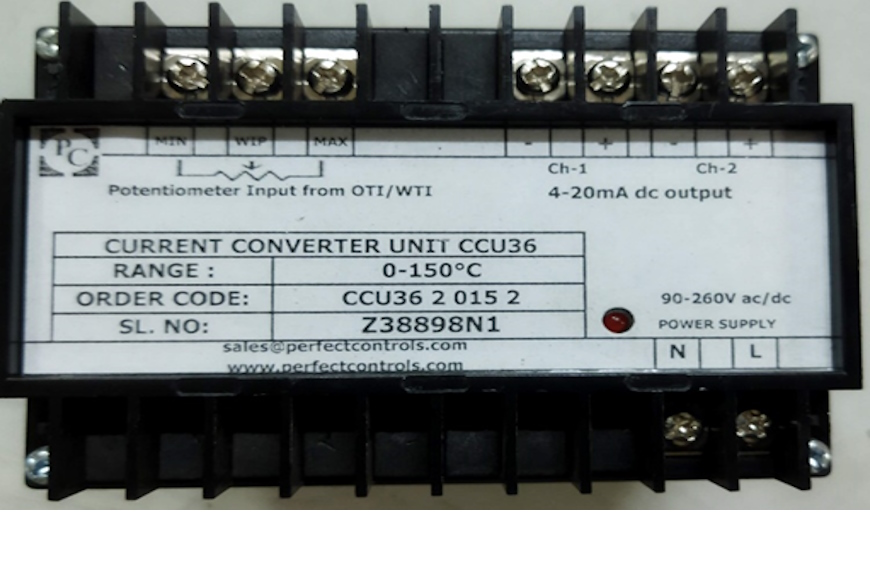

CCU36
  • CCU36 is a very competitively priced Current Converter Unit
  • The Top Oil Temperature/Winding Temperature of Power & Distribution Transformer can be measured by our Oil & Winding Temperature Indicator (OTI/WTI) fitted with inbuilt precision Potentiometer, This potentiometer resistance is calibrated with respect to the temperature measured by our OTI/WTI
  • CCU36 connected to this Potentiometer resistance from OTI/WTI converts the measured resistance value in to 4-20 mA dc (corresponding to 0-150 Deg C ) Current mode signal for SCADA or display applications.

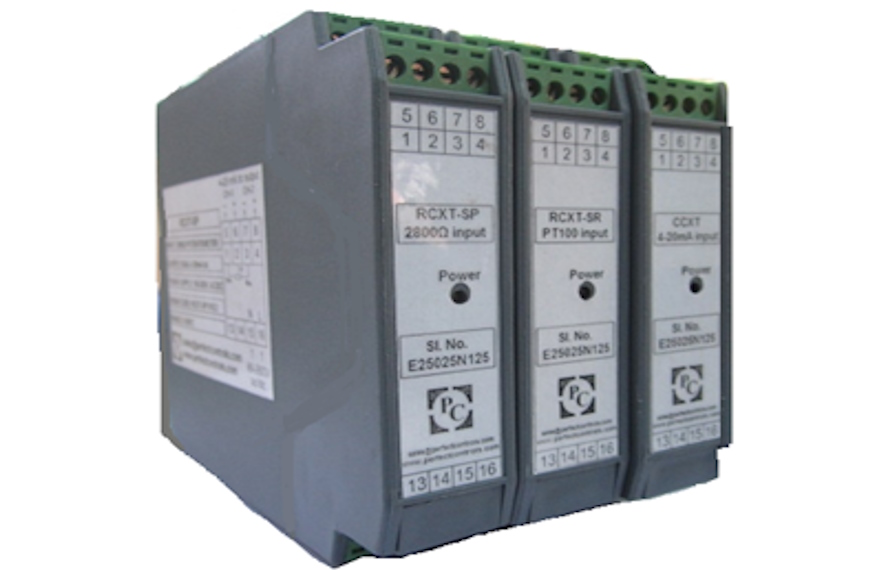

Slim RCXT
  • RCXT-Slim is a very compact, thin (25 mm width) DIN Rail Mountable Resistance to Current transducer
  • The Top Oil Temperature/Winding Temperature of Power & Distribution Transformer can be measured by our Model PC 171 & PC 252 Oil & Winding Temperature Indicator fitted with Precision Potentiometer or Pt100 RTD sensor which is then connected to RCXT that converts the measured temperature to a robust single / Dual channel 4-20mA dc current output that can be reliably transmitted to a remote point for SCADA or display applications

PT 100 - RWTI
  • Pt100 RTD based Oil & Winding Temperature Transmitters
  • Ideal for SCADA systems
  • With 4-20mA dc output and Optional digital indicator
  • In various configurations for all applications
  • Single, Dual (even 4) output versions
  • 1,2 or 3 measuring systems for all windings in transformer
  • Pt100 RTD sensor for Oil temperature measurement
  • Winding Temperature is measured using a Thermal Imaging device which is specially designed for each transformer manufacturer
  • A Thermal Imaging Device accurately simulates the winding gradient above top oil temperature based on CT secondary current
  • Since the time constant of the thermal imaging device is same as oil immersed transformer winding, the winding temperature is accurately tracked with respect to time

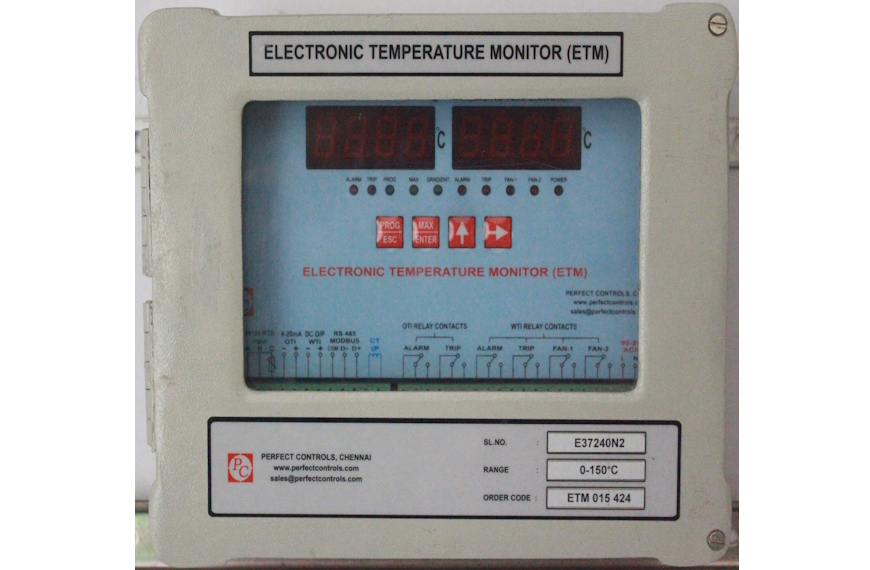

ELECTRONIC TEMPERATURE MONITOR (COMBINED OTI & WTI)
  • Electonic Temperature Monitor (ETM) is Pt100 based Electronic Oil & winding Temperature measurement and control instrument.
  • Single sensor and instrument to measure both Oil temperature and Winding temperature
  • Input : Pt 100 RTD, 3 Wire
  • 2 SPDT relay contact outputs for Oil temperature & 2 or 4 SPDT relay contact outputs for winding temperature
  • User selectable Alarm / Trip /Fan settings
  • The CT secondary current, temperature gradient and thermal time constant settings are all user configurable
  • Two 4 – 20mA Analog o/p for Remote indication (Optional)
  • RS 485 Digital communications port (Optional)
  • LED indications for ALARM, TRIP FAN1 or FAN2
  • Operates a relay with a SPDT contact when the inputs exceed the setting
  • If a RTD goes open circuit, it is detected, the displays “OPEN”. A failed RTD will not cause TRIP
  • Universal Power Supply 90-260V AC/DC
  • Field Mountable IP55 Enclosure

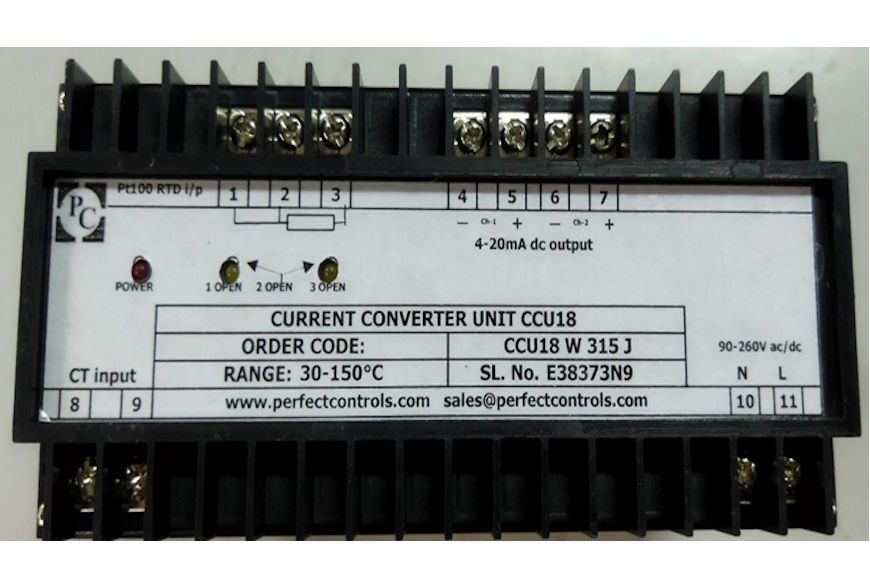

CURRENT CONVERTER UNIT (CCU18)
  • CCU-18 is a very competitively priced Current Converter Unit that can be used for Oil Temperature (CCU-18O) or Winding Temperature (CCU-18W) measurement.
  • The Top Oil Temperature of Power Transformer can be measured by our PT 100 RTD Temperature Sensor which is then connected to CCU-18 which converts the PT 100 resistance corresponding to Oil Temperature into proportional 4-20 mA analog dc signal
  • The winding temperature sensing is achieved by feeding a Current to the CCU 18 proportional to the Load current using a Current Transformer (CT)
  • This current from CT, proportional to pre-set temperature rise will be added with to the measured Oil Temperature output
  • The resulting output from the CCU 18 Transmitter will be proportional to the winding temperature of the power transformer
  • The Transmitter converts the Oil/ Winding temperature into 2 sets of 4 – 20 mA DC analog outputs. This has a facility of RTD open indication

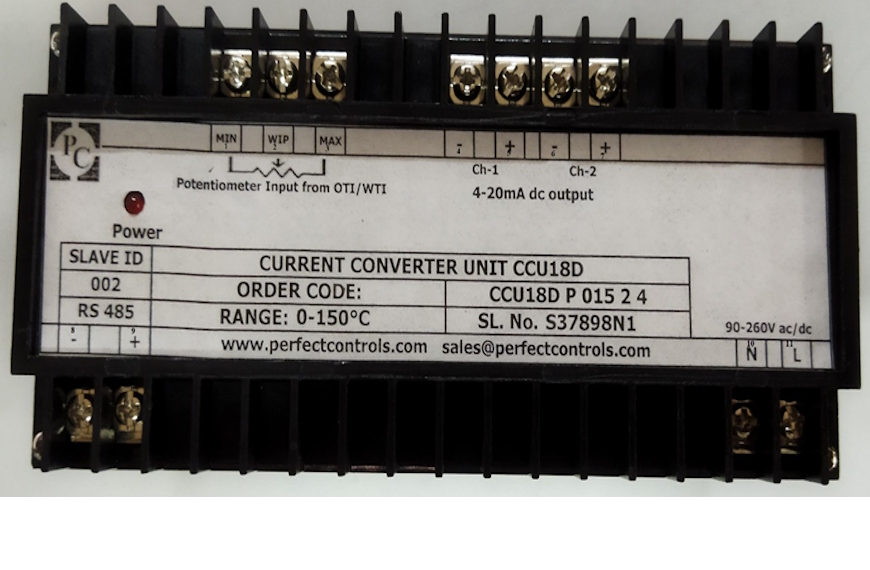

CCU18D
  • CCU-18D is a very competitively priced Current Converter Unit
  • The Top Oil Temperature/Winding Temperature of Power & Distribution Transformer can be measured by our PT 100 Resistance Temperature Detector (RTD) Oil and Winding Temperature Sensor or Model PC171 / PC252 / PC414RT Oil & Winding Temperature Indicator fitted with inbuilt precision Potentiometer, which is then connected to CCU18D. CCU18D converts the measured resistance value in to 4-20 mA dc Current mode signal for SCADA or display applications
  • It also Provides RS485 MODBUS for Digital communication of measure temperature values for online monitoring systems.

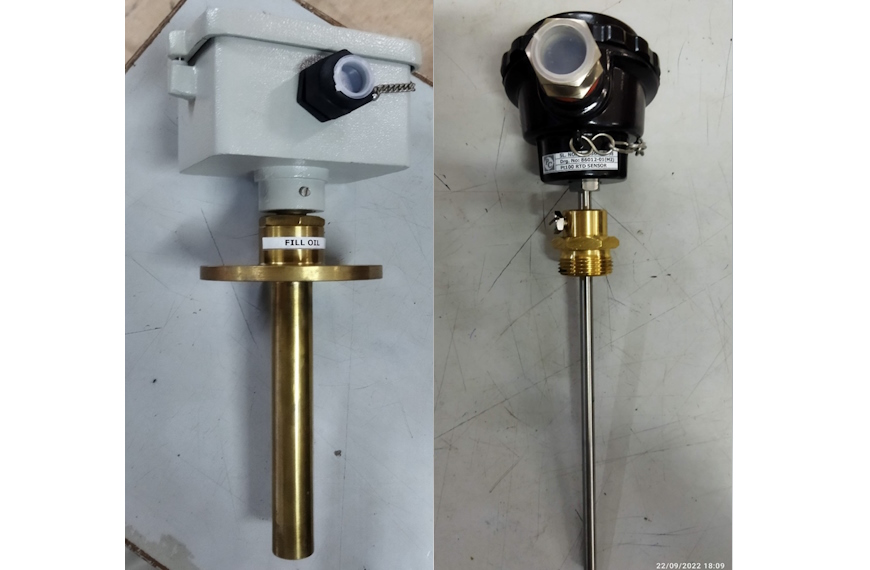

Head Mount Pt100 based Remote OTI & Remote WTI
  • RTDHM is a Pt100 RTD sensor with Head mount Temperature transmitter used for measurement of Oil & Winding Temperature of Power & Distribution Transformers with remote transmission and display.
  • It comprises of our Pt100 RTD Oil Temperature sensor / Winding Temperature sensor fitted with an Integrated Temperature Transmitter that converts the measured temperature to a robust 2 wire 4-20mA dc current output for reliable transmission to a remotely mounted Digital Temperature Indicator (DTI). DTI provides 24 V dc Power Supply to the Integrated Signal Transmitter and receives the 4-20mA signal input for display on the same 2 wires.

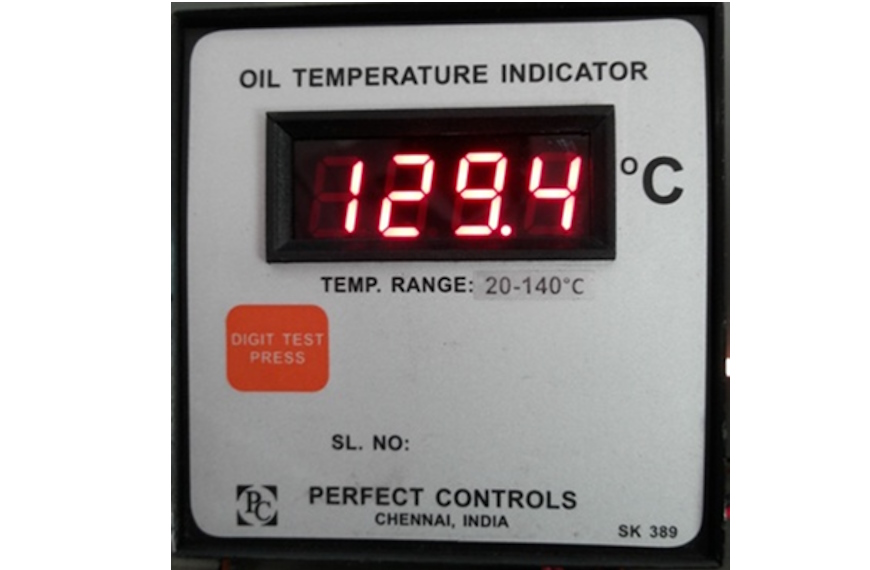

DIGITAL TEMPERATURE INDICATOR (DTI)
  • DTI is a compact Digital Temperature Indicator for Remote indication of Oil or Winding Temperature of Power & Distribution Transformers at Control Panel / Remote Control Room
  • The Top Oil Temperature / Winding Temperature of Power Transformers can be measured by our PT100 RTD Sensor or our OTI/WTI Model No. PC171 /PC252 with potentiometer which is converted to 4-20 mA signal by our Resistance to Current Converter Unit (RCXT)
  • This 4-20 mA analog signal is connected as input to our DTI for remote display of Oil or Winding Temperature at control room.

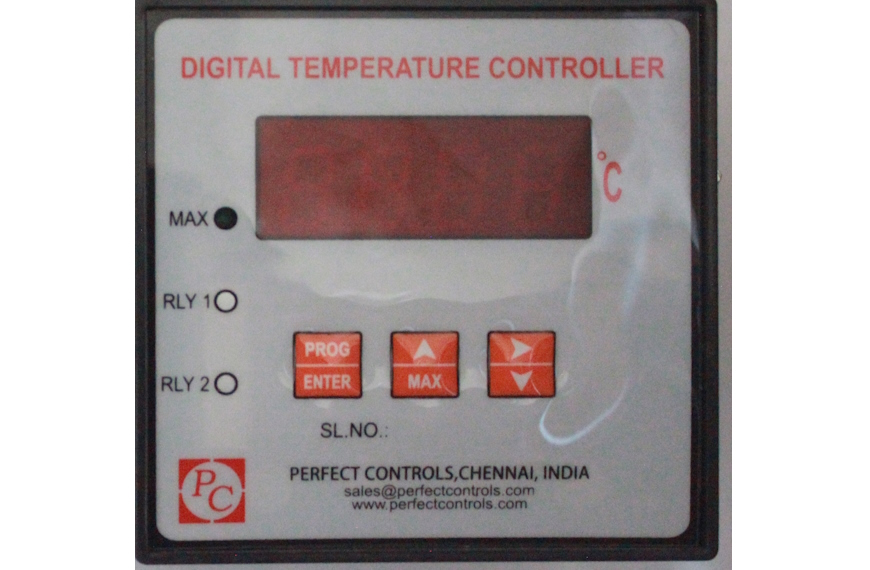

DIGITAL TEMPERATURE CONTROLLER (DTC)
  • Digital Temperature Controller (DTC) is a compact Digital Temperature Controller for Oil or Winding Temperature of Power & Distribution Transformers at Control Panel / Remote Control Room
  • The Top Oil Temperature / Winding Temperature of Power & Distribution Transformers can be measured by our Pt100 RTD sensor, OTI & WTI model PC171 / PC252 with in-built Precision Potentiometer which can be directly connected as input to our DTC for remote display & control of Oil or Winding Temperature of transformer

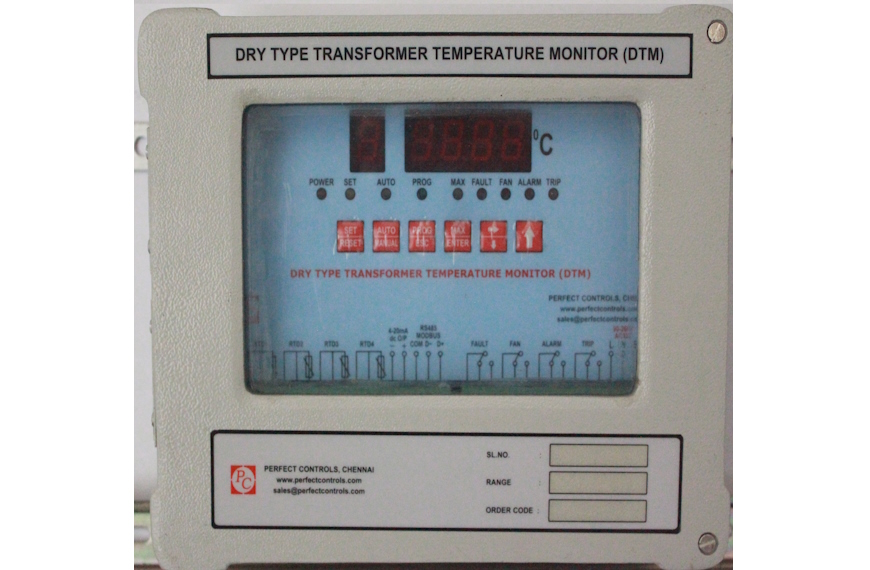

DRY TYPE TRANSFORMER TEMPERATURE MONITOR (DTM)
  • Dry Type Transformer Monitor (DTM) Is an Electronic Temperature Monitor for measurement & control of winding temperature of Dry type transformer
  • Input : Four nos. Pt 100 RTD 3 Wire (DIN 43760) (Cable length should be mentioned on the order) Three sensor for Transformer Winding and one for Transformer Core
  • 3 or 4 SPDT Relay contacts provided
  • User selectable Alarm / Trip /Fan settings
  • Weather proof case for outdoor services
  • High scanning speed
  • Data acquisition facility RS485 MODBUS RTU (Optional)
  • 4 – 20mAdc Analog o/p for Remote indication
  • LED indications for FAULT, ALARM, TRIP, FAN, Power Status
  • Operates relay with a SPDT contact when the inputs exceed the setting.
  • If a RTD goes open circuit, it is detected, the displays “OPE.n”.
  • Universal Power Supply 90-260V AC/DC
  • Field Mountable IP55 Enclosure

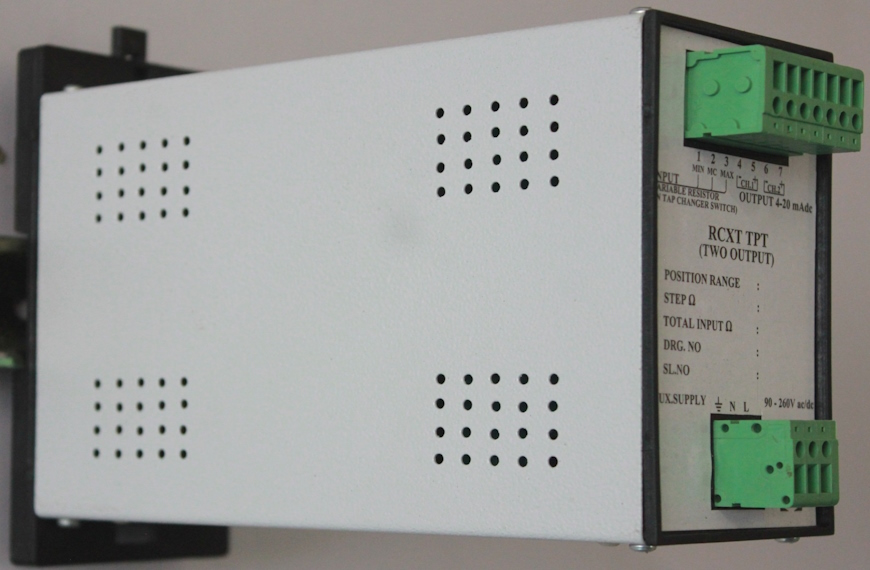

TAP POSITION TRANSMITTERS
  • RCXT TPT is a Tap Position Transmitter for On Load Tap Changers
  • They can be designed for 100 ohms or 1000 ohms steps and any numbers of steps as required by customer
  • Provide 4-20mA dc current output
  • Single or Dual (even 4) output versions offered
  • Optional Digital Indicator also provided

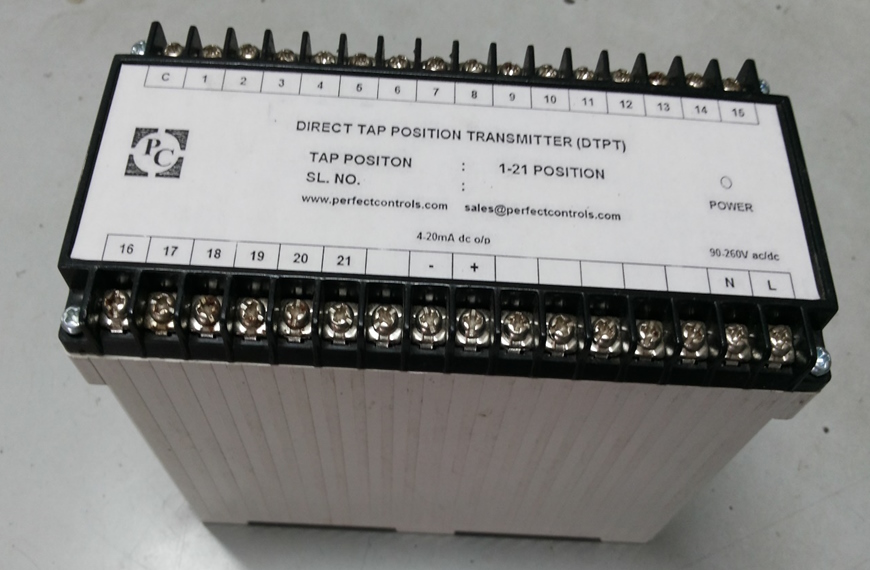

DIRECT TAP POSITION TRANSMITTER
  • Potential free contacts of Tap Changer switch can be connected to our Direct Tap Position Transmitter DTPT which converts the Tap positions of the transformer into corresponding 4-20 mA dc signal. This signal is used to display the Tap Position at a remote point
  • Potential free contact corresponding to no. of taps connected directly to DTPT
  • Output: 4-20 mA dc
  • Universal Power Supply 90-260V AC/DC
  • Burden on output: 500Ω

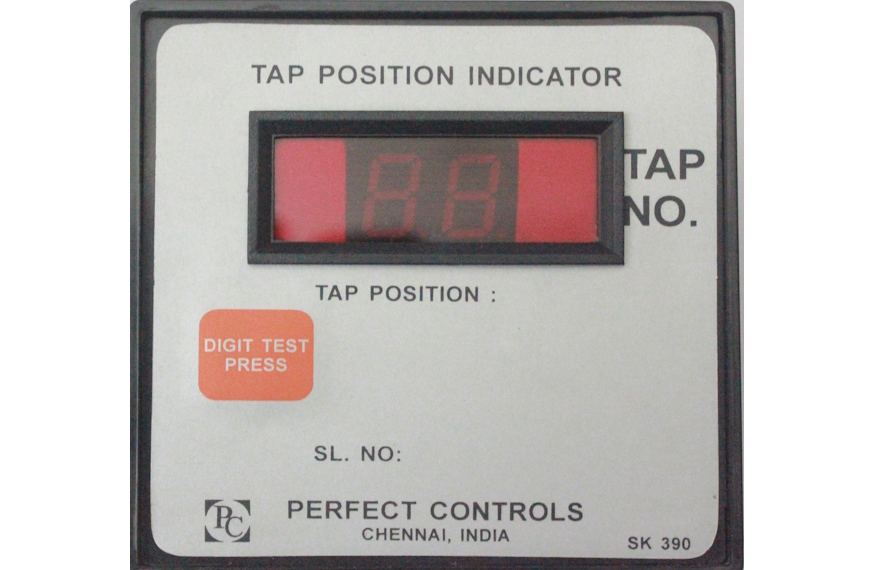

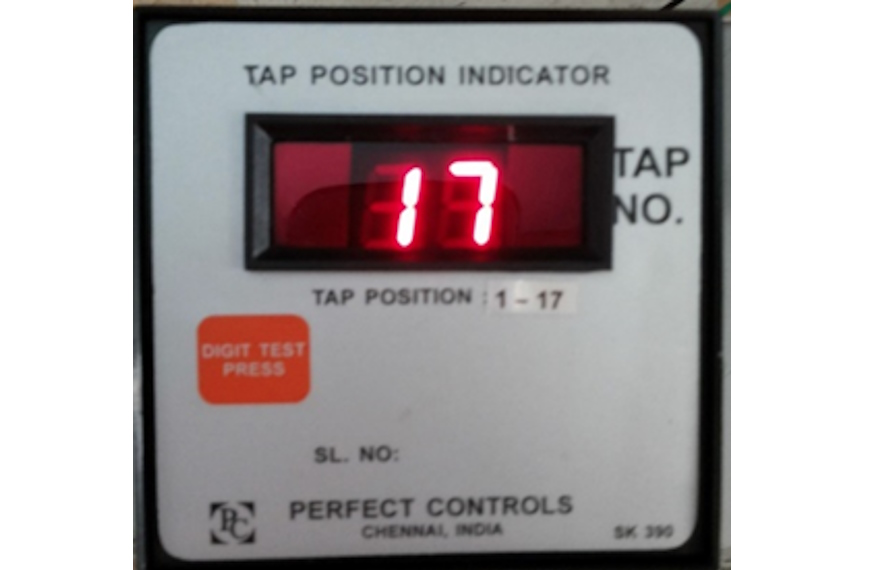

TAP POSITION INDICATOR
  • Digital Tap Position Indicator
  • 4-20mA input
  • Optional 4-20 mA dc output
  • Universal Power Supply 90-260 V AC/DC
  • Compact size

DIRECT TAP POSITION INDICATOR
  • Direct step resistance input from OLTC
  • No need for an additional transducer
  • Direct 100Ω / 1000Ω step resistance input
  • Optional 4-20 mA dc output
  • Universal Power Supply 90-260 V AC/DC
