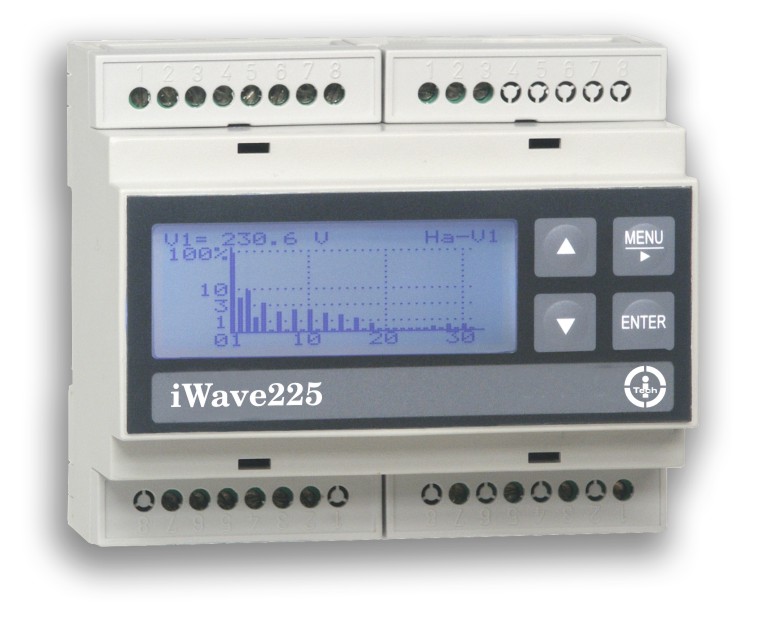

Unique DIN Rail mounted Graphical LCD Multi-Function Power Meter
Graphic Display of Harmonic Spectrum
Graphic Display of PHASOR Diagrams
THD & Harmonics analysis Upto 31st Harmonic
Unique Rogowski coil Input option (see Rogowski Coil section)
Simultaneous display of 4 parameters
High contrast Backlit LCD Display
Direct 600 (750) Vac
Programmable CT/PT ratios
1 A/5A input programmable
True RMS Accurate even for distorted wave forms
Neutral current Monitoring
Power & Current demand calculation during user- definable time period
Data logging capability – 128 KB / 512 KB
Stores MIN/MAX/AVG values on Eight selectable parameters for user configurable 1,5,10,15,30 or 60 minutes programmable.
Total & Daily energy consumption Recording.
Daily consumption Recording lasts more than 300 days.
RS485 – MODBUS or A2ASCII options
RS232 – MODBUS or A2ASCII options
Real Time waveform downloading via communication port at 128 samples/ cycle.
Calculation of Capacitor Bank value for PF compensation
Real Time clock with Battery Back up
Upto 4 Digital Outputs or energy pulsing or for alarm
|
