Highly Sophisticated Power Quality Analyser - Event & Alarm Recording, Sags & Swells, Waveform Capture, Waveform Display, PHASOR Diagrams, Historical Trending, TOU & more …
THD & FFT Harmonics analysis Upto 50th Harmonic
Powerful Sags & Swells detection on L-N voltages at half cycle resolution (10ms). Pre & Post Trigger logging (100+100 halfcycles) alarm relay output & analysis as per EN50160
MIN/MAX/AVG values recording with 1 cycle resolution (20ms) on upto 10 selectable parameters an analysis as per EN50160.
Advanced Waveform Capture option on V&I
Advanced Datalogging option with 2 MB Non Volatile memory
High accuracy 0.1% on V & I

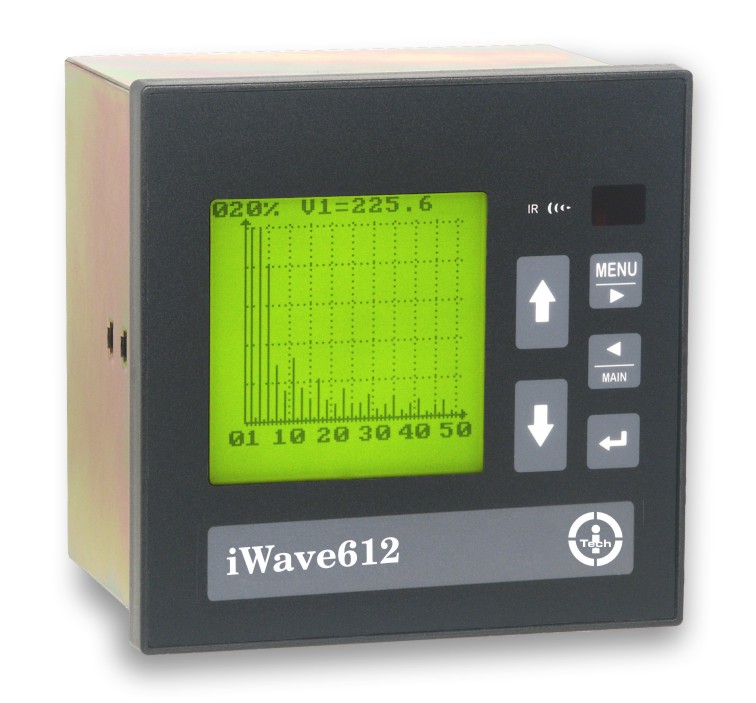

Large Graphic LCD Display of
· V & I wave forms
· Voltage & Current Harmonic Spectrum
· Phasor Diagrams
· Trends of Measured Values
· Consumption Profiles
CPU2 option – the co-processor board performs the simultaneous high-resolution sampling of voltage and current, allowing the cycle-by-cycle power analysis for 50/60 Hz lines.
VDROP option – sags & swells detection as per EN50160 standard on L-N voltages with half cycle resolution (10ms @ 50Hz). Pre-and Post-trigger logging (100 +100 half cycles RMS values).
VMAX option (EN50160 standard) – VDROP and Min/Avg/Max values calculation and recording with one cycle resolution (20ms @ 50 Hz). This function allows to record up to 10 parameters selected among voltage, current, power, PF and frequency.
Time – of – Use (TOU) programmable data recording.
WCAP option – advanced waveform capture function on currents and L-N voltages. The instrument can store up to 10 + 200 waveforms before and after a threshold overcome, with a resolution from 8 to 32 samples includes a second selectable function: Min/Avg/Max values recording.
Up to 10 programmable recordings with different start and stop time.
Import/export active, reactive and apparent power demand with programmable average time. The average period can be synchronized by a digital input.
Instantaneous read values selected between the main parameters.
Instantaneous min/max values measured, Voltage and current harmonic values are all recorded at programmable interval times.
Event, Alarm and Status recording.
The TOU function stores the energy consumption in different registers according the programmed time –scheme.
The instrument records the status change of 8 programmable set points, the digital outputs ON/OFF and the instrument supply ON/OFF.
All the events are integrated by date and time reference.
The CPU2 option includes 1 MB non-volatile data memory.
Both RS232 and RS485 dip-switch selectable.
MODBUS or A2 ASCII protocol
Optional 10/100 Ethernet communications
Optional Profibus communications
Optional LONBUS communications
On-board HTML web page server or direct communication through Ethernet / Internet network using MODBUS or A2 ASCII protocol.
Real time clock with battery backup.
Calculation or capacitor bank value for PF compensation.
Over 600 electrical parameters are monitored,
K-Factor measurement
Thermal Current measurement
Voltage & Current Unbalance & many other measurements.
Fully bi-directional, four – quadrant measurement.
10 energy counters available.
Power & Current demand calculation during user- definable time period.
Upto 4 digital inputs for pulse counting with programmable multiplier or Waveform capture Triggering.
One digital input can be used for demand period synchronization
Password protection
Wide Power Supply range – 65-250 V ac/90-250 V dc
True RMS accurate measurement even for distorted waveforms
Direct 600(750) V ac input
Programmable 1 A / 5 A input & CT/PT ratios
Upto 4 analog outputs 0-20 or 4-20mA
Upto 6 Digital Outputs for energy pulsing or Alarm / Trip Functions
|
