DIN 144 X 144 mm Size

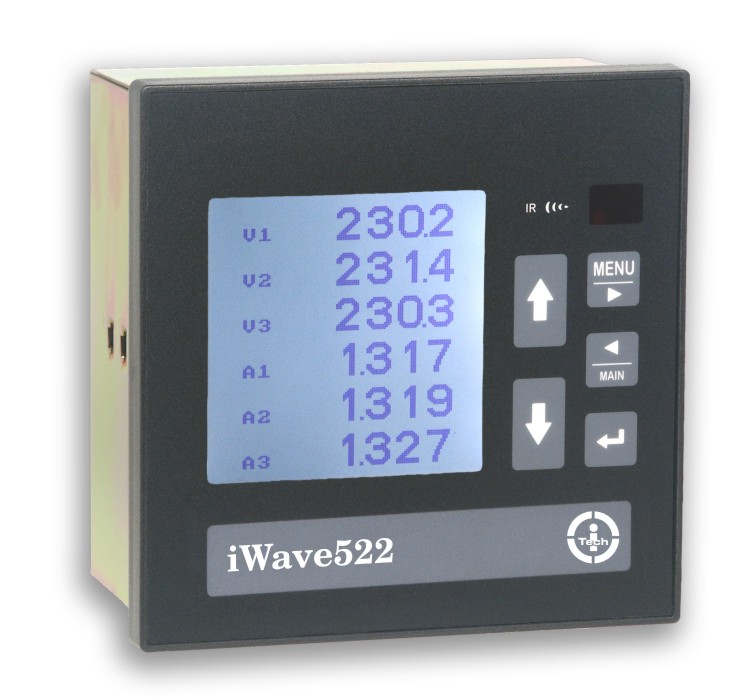

Very Sophisticated Multifunction, Power quality Meter with Advanced functionality - Event & Alarm recording, Waveform capture, Waveform display, Phasor diagrams, Historical Trending , Time of use & more
Large Graphic , Backlit LCD display
Simultaneous Display of 6 or more parameters
Display of Voltage & Current Waveforms at 128 samples/ cycle
Graphic Display of Phasor Diagrams
Graphic Display of Harmonic Spectrum upto 50th Harmonic
Unique Rogowski coil Input option (see Rogowski Coil section)
Very High Accuracy – 0.1% on V & I
Over 600 electrical parameters are monitored.
Graphical Trending of 6 measured values on 15 mm, 1 hour, 1 day or 1 month scales
Advanced waveform capture Function – 200 waves with a resolution of 16 to 128 samples / cycle can be stores after a trigger programmed on a digital input or output change or set point crossing or from keypad.
Powerful Datalogging function with 2 MB Non-Voltable memory
Stores MIN/MAX/AVG values on Eight selectable parameters for user configurable 1,5,10,15,30 or 60 minutes programmable.
Total & Daily energy consumption Recording.
Daily consumption Recording lasts more than 300 days.
Very advanced Time of use (TOU) Functionality
Event, alarm & Digital output recording on 8 programmable set points.
Upto 4 Analog Outputs 0-20 or 4-20mA
Upto 6 digital outputs for energy pulsing or alarm tripping
Upto 4 digital inputs or pulse counting with programmable multiplier or Waveform captive Triggering
One digital input can be used for demand period synchronisation
Calculation of capacitor Bank value for PF compensation
Real time clock with Battery Backup
Password protection
RS485/RS232 – dipswitch selectable – A2 ASCII or MODBUS
Ethernet communications option
PROFIBUS communications option
LONBUS communications option
Ethernet with Webserver communications Option
Wide Power Supply range – 65-250 Vac/90-250-V dc
True RMS accurate measurement even for distorted waveforms
Direct 600(750) V ac input
Programmable 1 A / 5 A input
Programmable CT/PT ratios
Power & Current demand calculation during user- definable time period
THD, Even / Odd & Total Harmonics
10 Energy Meters
K-Factor Measurement
Voltage & Current Unbalance Measurement
IP 54 Front Panel
|
